Description

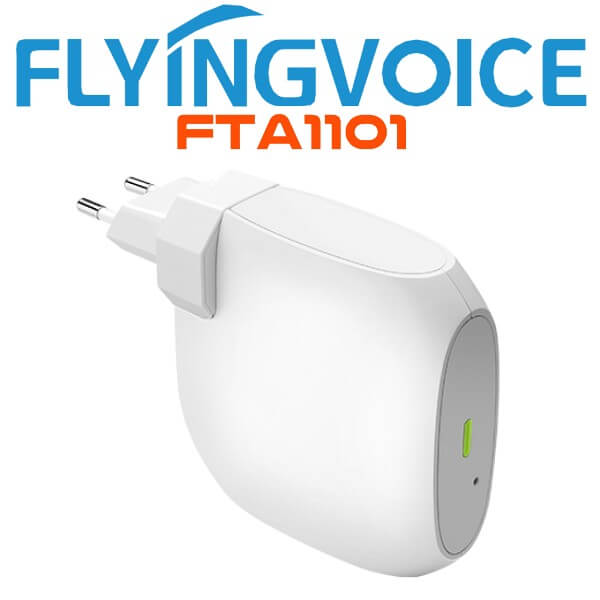

Flyingvoice FTA1101 Wireless VoIP Adapter Dakar

The Flyingvoice FTA1101 Wireless VoIP adapter Dakar includes extended functions that support and 1 FXS port. This design not only provides users with traditional VoIP and routing capabilities. Users may take FTA1101 as an FTP server, to share LAN files, pictures, and other resources. Meanwhile, 1 FXS port may be well adapted to small and micro enterprises, FXS can work for telephone or for Fax, no have to add additional equipment. Flyingvoice FTA1101 Wireless VoIP Gateway Dakar is ideally suited to small and medium enterprises (SMB) to make wireless office. Flyingvoice FTA1101 VoIP adapter Dakarsupports IEEE802.11n wireless LAN standard, the best wireless speed is up to 300Mbps and it supports 2.4GHz. it’s a form of advanced VoIP wireless router, can’t only provide wired Internet sharing capabilities but also offers Access Point (AP) function for daily wireless communication. With an advanced router, Flyingvoice FTA1101 Wireless VoIP adapter is ready to form calls via SIP proxy voice communications, plus the IP sharing, and therefore the QoS mechanism also, the USB ports can make users attach memory device devices and realize file sharing via it.

Flyingvoice FTA1101 Wireless VoIP adapter Features :

• Auto-Provisioning
• 10/100Mbps Ethernet
• T.38 And T.30 FAX
• 2.4G Wireless
• Rich QoS capability in wired and wireless

Flyingvoice FTA1101 Wireless VoIP adapter Specifications :

Flash

• 16MB Flash

RAM

• 64MB SDRAM

Power

• AC/DC Adapter
• AC Input: 100~240V, 50~60Hz

Operating System

• Linux 2.6.21

I/O Interfaces

• 1 RJ-45 for WAN port (Ethernet 100 Base-T)
• 1 RJ-45 for LAN port (Ethernet 100 Base-T)
• 1 RJ-11 for FXS port
• 1 USB

Environmental

• Operation Temperature: 0~50 Degree C
• Storage Temperature: -25~ 85 Degree C
• Relative Humidity: 10%~90% No Condensing

Audio Codec

• G.711(A/u),PAMS>4.3
• G.729A/AB,PAMS>4.0
• T.30 FAX with G.711
• Real time FAX over IP via T.38
• Adaptive Jitter Buffer
• Voice Activity Detection
• Comfort Noise Generation
• Echo Cancellation

Management

• Firmware Upgradeable
• Web Management Interface
• IVR-driven Management Interface
• Local and Remote Syslog (RFC3164)
• Auto Provisioning
• SNTP Time Synchronization
• Multi User Level
• SNMPv2
• TR069
• Support Flying FCMS Cloud Management

Call Features

• 3-way conference
• Call hold
• Call forwarding
• Call transfer
• Call waiting
• Caller ID and CWCID
• QoS Layer 3
• Call Log
• CID/CWCID
• Dial Plan
• DTMF Mode: Inband, outband and SIP Info

Applications

• Support NAT mode and Bridge mode
• Support DDNS
• MAC address cloning
• SIP proxy redundancy
• NAT Traversal by STUN
• Built-in Wired speed NAT Router
• DHCP Server and Client
• IP conflict detection
• Port Forwarding, DMZ, SuperDMZ
• 802.1Q VLAN/802.1p, DSCP, Rate Limiting
• VPN(PPTP,L2TP, IPSec)
• SNTP
• IGMPv2
• Firewall(DDoS attack)

Protocols

• 802.11 b/g/n support
• 4 SSID
• Static WEP(64/128bit)
• Dynamic WEP(64/128bit)
• AES(CCMP/TKIP)
• MAC certification
• WEP certification
• WPA-PAK/WPA-PSK(2.0)
• WPA/WPA2
• AP Isolation and MBSSID AP Isolation
• WMM
• WDS
• WPS
• Station list
• MAC Filter(different from wired MAC Filter)

Wireless

• Support 802.11 b/g/n
• 4 SSID
• Static WEP(64/128bit)
• Dynamic WEP(64/128bit)
• AES(CCMP/TKIP)
• MAC certification
• WEP certification
• WPA-PAK/WPA-PSK(2.0)
• WPA/WPA2
• AP Isolation and MBSSID AP Isolation
• WMM
• WDS
• WPS
• Station list
• MAC Filter(different from wired MAC Filter)

Size and Weight

• 84mm(L)x84mm(W)x28mm(H)
• 110g(N.W)
