Description

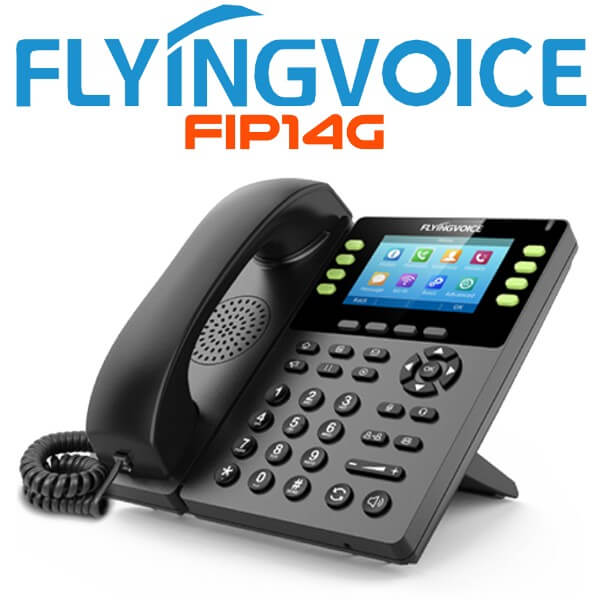

Flyingvoice FIP14G Wireless IP Phone Dakar

Flyingvoice FIP14G IP Phone is a feature-rich business IP phone with a 3.5 inch IPS color display in 480 x 320 resolution. Flyingvoice FIP14G Wireless VoIP Phone Dakar supports Opus audio codec and uses powerful sound processing technology which can deliver audio calls with excellent sound quality in ultra-high definition. Flyingvoice FIP14G is an IP phone or Wireless Voip Phone with dual Gigabit Ethernet ports and PoE, but also has built-in 2.4G Wi-Fi that can fully meet your needs for various scenarios. Flyingvoice FIP14G IP Phone supports dual 10/100/1000 Mbps ports and built-in 2.4GHz Wi-Fi, you can connect with the way you like.

Fip14g Wifiphone Dakar

The Flyingvoice FIP14G IP Phone built-in USB port allows you to use Bluetooth headset via Bluetooth USB dongle. Flyingvoice FIP14G IP Phone has the adance feature of record calls by plug in a USB flash drive on the USB port Besides, Flyingvoice FIP14G IP Phone supports EHS Headset. This Flyingvoice FIP14G business IP phone supports up to 8 SIP accounts, three-way conferencing, call transfer, call waiting and call forward, etc. Besides, Flyingvoice FIP14G IP Phone performs highly secure remote provisioning and software upgrades by using standard encryption protocols.

Fip14g Voip Wirelessphone

• 3.5″ 480 x 320 color display
• 8 SIP accounts
• HD Voice
• Dual-port Gigabit Ethernet
• PoE (optional)
• Stand with 3 adjustable angles
• RJ9 Headset support
• 2.4G Wi-Fi
• Wall mountable

Flyingvoice FIP14G IP Phone Features.

Simple and Easy to Use UI Design
FIP14G comes to a new UI design, which is elegant and easy to use. Prompts guide you through a simple installation process. Start a voice collaboration is easy with FIP14G.

Flexible Deployment
Whether in the office or in the conference room, say goodbye to the complex deployment, connect people with the way you like. FIP14G supports dual 10/100/1000 Mbps ports, PoE and built-in 2.4G Wi-Fi

HD Voice Quality
FIP14G provides great sound quality. We have created high-definition sound quality solutions for handles, speakers and hands-free scenarios, even in a noisy environment.

High Security and compatibility
Your conversations are well protected by configuration files with AES, SRTP and TLS call encryption, etc. The FIP1X series IP phones are widely compatible with SIP based devices and PBX platforms such as Asterisk, Broadsoft, and 3CX, etc.

Flyingvoice FIP14G IP Phone Specifications.

Audio Features

• HD voice: HD handset, HD speaker
• Codecs: Opus, iLBC, G.722(HD), G.711(A/u), G.729AB, G.723
• DTMF: In-band, RFC 2833 and SIP info
• Full-duplex hands-free speakerphone
• VAD, CNG, AEC, PLC, AJB, AGC

Phone Features

• 8 SIP accounts
• Call hold, mute, DND, redial, auto-answer
• One-touch speed dial, hotline, SMS
• Call forward, call waiting, call transfer (attended/blind)
• Paging, intercom
• 3-Way conferencing
• Direct IP call without SIP proxy
• Set date time manually or automatically
• Dial rule
• IP conflict detection
• 2.4 GHz Wi-Fi

Directory

• Phone book (500 records)
• Blacklist
• XML/LDAP remote phonebook
• Phonebook search/import/export
• Call history: dialed/received/missed (60 records)

IP-PBX Features

• BLF
• Anonymous call, anonymous call rejection
• Voice mail, call park, call pickup
• Message waiting indicator(MWI)

Feature keys

• 8 Line keys
• 7 features keys: message, headset, hold, mute, transfer, redial, hands-free speakerphone
• 4 Soft Keys
• 5 Navigate Keys
• Volume+/-

Display and Indicator

• 3.5″ 480 x 320px color IPS screen with backlight
• 16-bit depth color
• LED for call and message waiting for indication
• Dual-color (red/green) illuminated LEDs for line status information
• Intuitive user interface with icons and soft keys
• Multilingual user interface
• Caller ID with name and number
• Power saving

Interface

• 2x RJ45 Ports (Ethernet 10/100/1000 Base-T)
• Support PoE (Optional)
• 1 x RJ9 Handset port, 1 x RJ9 Headset port
• 1 x Power adapter

Management

• Configuration: browser/phone/auto-provision
• TFTP/HTTP/HTTPS for Auto Provisioning
• TR069(TR104/TR106)
• Reset to factory, reboot
• Package tracing export, system log
• DNS/DNS SRV (RFC 1706, RFC 2782)
• NAPTR for SIP URI lookup (RFC 2915)
• Cloud device management: FCMS
• DHCP server and DHCP client

Others

• Color: Classic grey
• Stand with 3 adjustable angles
• Wall mountable
• AC/DC Adapter
  AC Input: 100~240V, 50~60Hz
  DC Output: 5V, 1A
• Power consumption(PSU): 1.5-3.5W
• Power consumption(PoE): 1.9-4.5W
• Dimension(W x D x H x T):   189mm x 185mm x 173mm x 34mm
• Relative humidity: 10%~90% No Condensing
• Storage temperature: -25~ 85°C
• Operation temperature: 0~50°C

Network and Security

• SIP v1 (RFC2543), v2 (RFC3261)
• Call server redundancy supported
• NAT Traversal By STUN
• Proxy mode and peer-to-peer SIP link mode
• IP assignment: Static IP and DHCP
• HTTP/HTTPS web server
• Time and date synchronization using SNTP
• SDP (RFC 2327) ,UDP/TCP
• Mutil-VLAN, DSCP and 802.1p QoS
• SRTP
• TLS
• HTTPS certificate manager
• AES encryption for the configuration file
• Digest authentication
• VPN:PPTP, l2TP, OpenVPN
• IPv4 /IPv6 ,Dual stack IPv4/IPv6
• RTP/RTCP (RFC 1889, RFC 1890)
• ARP/RARP (RFC 826/903)
• IEEE802.1Q VLAN/802.1p/DSCP
• SNMPv2
• LLDP/CDP/DHCP VLAN

PackageFlyingvoice FIP14G IP Phone

• Handset with handset cord
• Ethernet cable
• Stand
• Quick start guide
• Power adapter (Optional)
• Qty/CTN: 10 PCS
• N.W/CTN: 9.44 kg
• G.W/CTN: 9.94 kg
• Giftbox size: 270mm x 195mm x 78mm
• Carton meas: 420mm x 420mm x 290mm

Compatible with

• Asterisk, 3CX, broad soft, Elastix, VitalPBX, Yeastar, etc.
