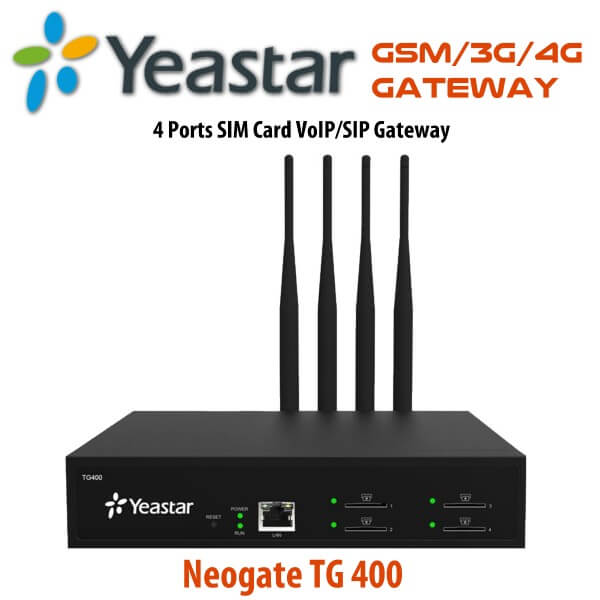

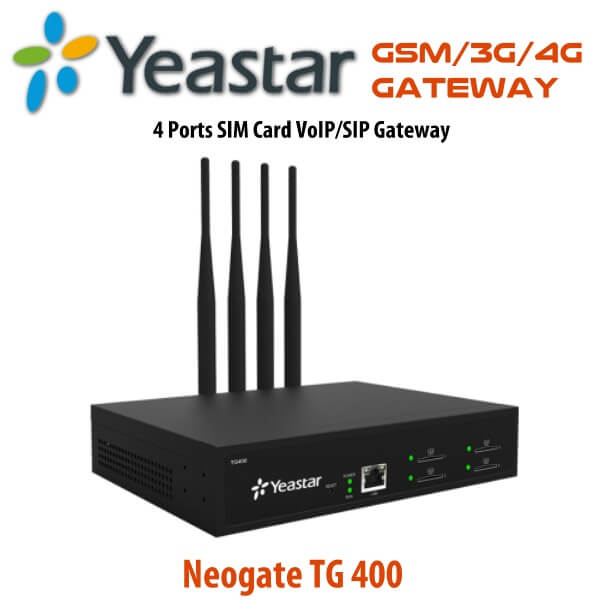

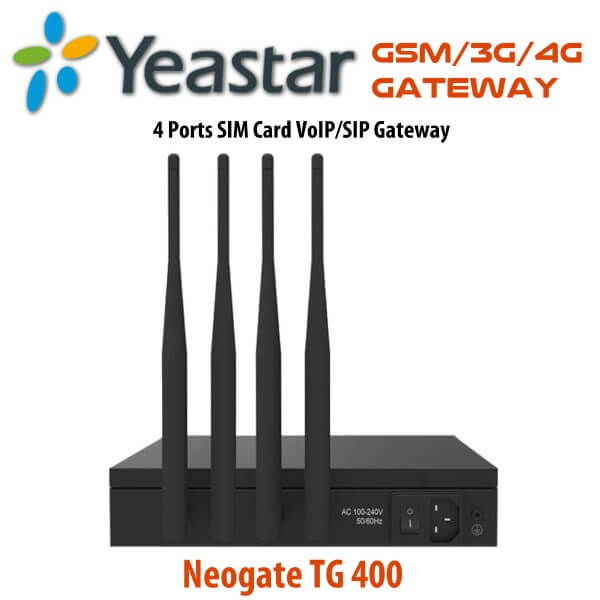

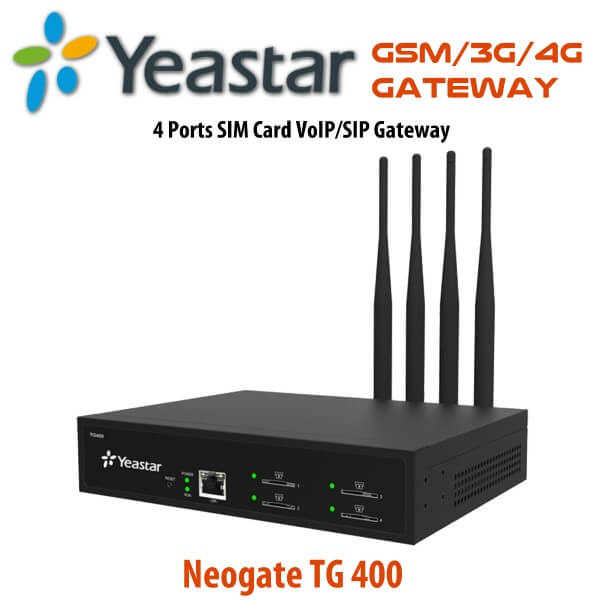

YEASTAR TG400 4 PORT GSM Gateway Dakar

The compactly designed Yeastar TG400 4 Port GSM Gateway boasts of 4 channels and connects GSM/CDMA/UMTS network  with VoIP, to make your daily communications more exciting and easier. The premium Gateway suits small and medium sized businesses, offices and even call centres where daily phone communications are required. It is a pocket – friendly solution that makes connection easy and extremely flexible.

Ask for Quote & Get Low Price

Description

YEASTAR TG400 4 PORT GSM Gateway Dakar

The Yeastar TG400 4 Port GSM Gateway Dakar supports a strong 850/900/1800/1900MHz network frequency and is based on SIP,v.2.0(RFC3261) thus allowing you to register to different SIP Proxy servers as well as establish many concurrent calls. It is also equipped with 1 10/100 Mbps LAN port and supports two – way communication including Termination (VoIP to GSM/WCDMA), Origination (GSM/WCDMA to VoIP). The powerful Gateway offers you clear phone call communications using both narrowband and wideband audio codecs including G.711 (alaw/ulaw), G.722, G.726, G.729A, GSM, ADPCM, and Speex.

YEASTAR TG400 4 PORT GSM GATEWAY FEATURES

CALLING TYPE

Yeastar TG400 4 Port GSM Gateway presents two – way phones calls including, termination and origination whereby Termination entails making calls from the VoIP to the GSM Gateway and origination is when a user makes calls from the GSM to the VoIP Gateway. This feature makes communication very exciting and works on a number of smart mobile devices.

LEAST COST ROUTING

Least Cost Routing is a way of finding a cheaper way to route phone calls during communication. A user simply analyses, selects and directs the path of outbound and inbound communications traffic while choosing the path which delivers the best call rates using the high performing Yeastar TG400 4 Port GSM Gateway.

RICH QUALITY AUDIO

The Yeastar TG400 4 Port GSM Gateway incorporates both narrowband and wideband audio codecs such as G.711 (alaw/ulaw), G.722, G.726, G.729A, GSM, ADPCM, and Speex, resulting in very clear audio. It also uses  G168 Echo Cancellation to filter out any background and surrounding noises that may occur in noisy and busy environments.

VOLTE FOR CLEAR CALLS

A user can make very clear phone calls while browsing on the internet using a cellular data at the same time. VOLTE feature incorporated into the Yeastar TG400 4 Port GSM Gateway enables it to deliver faster calls with crystal clear wideband audio.

MOBILE CONNECTIVITY FOR SMB

The Yeastar TG400 4 Port GSM Gateway offers perfect communication solution for both small and medium sized businesses. It works to enhance your high performance as well as securing both wired and wireless infrastructure for mobile and cloud-based applications. It is highly versatile and works with various IP PBX platforms to enhance the productivity of your workers.

MOBILE TRUNKINGS

You can add GSM/WCDMA to the Yeastar TG400 4 Port GSM Gateway so as to explore its maximum communication features and enjoy its full capabilities such as making calls to different mobile networks cheaply.

BULK SMS SERVICE

The Bulk SMS Service feature  incorporated into the Yeastar TG400 4 Port GSM Gateway enables your workers to send multiple text messages to customers, branded with a sender ID which is usually the name of your organization. The feature does not limit you to sending messages locally since you can also send messages internationally at a low affordable price.

SIP COMPLIANCE

The Yeastar TG400 4 Port GSM Gateway is based on SIP v.2.0 (RFC3261) so that you can easily plug and play your phone without any configurations. Once the phone is connected to the network and powered on, initialization starts automatically, after which the phone is up and ready for use. It therefore works perfectly with major PBX platforms and softswitch brands including, Asterisk, MS Lync, Trixbox, Elastix, FreeSWITCH, 3CX.

USER FRIENDLY

Setting up the Yeastar TG400 4 Port GSM Gateway  has never been easier. A user requires no technical skills in order to operate the high performance Gateway. It boasts of a simple and Web – based configuration which enables you to set up the Gateway within minutes.

INTEROPERABILITY

You can use various professional platforms IP PBX and softswitch brands such as Asterisk, MS Lync, Trixbox, Elastix, FreeSWITCH, 3CX on your Yeastar TG400 4 Port GSM Gateway.

RICH QoS ABILITIES

The Yeastar TG400 4 Port GSM Gateway saves you from unnecessary delays when there are high volumes of traffic in the network being used. It simply prioritizes traffic so that more important traffic can pass first, resulting in an overall performance improvement for critical network traffic.

ADVANTAGES OF USING THE YEASTAR TG 400 4PORT GSM GATEWAY :

  • Calling Type – termination (VoIP to GSM), origination (GSM to VoIP)
  • Intelligent call routing
  • Callback function
  • SMS sending and receiving (Web interface)
  • LCR (least cost routing)
  • Simple web based configurations
  • Cost Savings – Save phone bills tremendously with mobile-to-mobile calls and LCR.
  • Back up – Work as a cost-effective backup when the landline network goes down.
  • Easy to install – Everything can be easily set up in the Web based management interface.
  • Easy to integrate – High compatibility with major IP PBX and softswitch brands (Asterisk, MS Lync, Trixbox, Elastix, FreeSWITCH, 3CX)

YEASTAR TG400 4 PORT GSM GATEWAY SPECIFICATIONS

Model TG 400
Number of Ports 4
GSM Frequency** 850/900/1800/1900 MHz
WCDMA Frequency** 850/1900 MHz, 850/2100 MHz, 900/2100 MHz
4G Data
4G LTE Band** Depends on the module type.
Protocol SIP, IAX2
Antenna Splitter (4 in 1) Support
Transport UDP, TCP, TLS, SRTP
Voice Codec G.711 (alaw/ulaw), G.722, G.726, G.729A, GSM, ADPCM, Speex
DTMF Mode RFC2833, SIP Info, In-band
Echo Cancellation ITU-T G.168 LEC
Calling Type Termination (VoIP to GSM/WCDMA), Origination (GSM/WCDMA to VoIP)
Console Port
Network Protocol FTP, TFTP, HTTP, SSH
LAN 1 10/100 Mbps Ethernet Interface
NAT Traversal Static NAT, STUN
Network DHCP, DDNS, Firewall, OpenVPN, Static IP, QoS, Static Route, VLAN
Operation Range 0°C to 40°C, 32°F to 104°F
Power Supply AC 100-240V
Storage Range -20°C to 65°C, -4°F to 149°F
Dimensions (L × W × H) (mm) 213 x 160 x 44
Humidity 10-90% non-condensing
