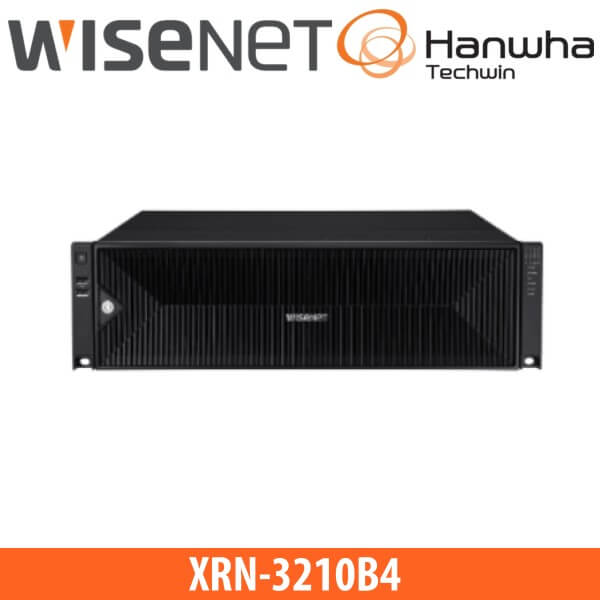

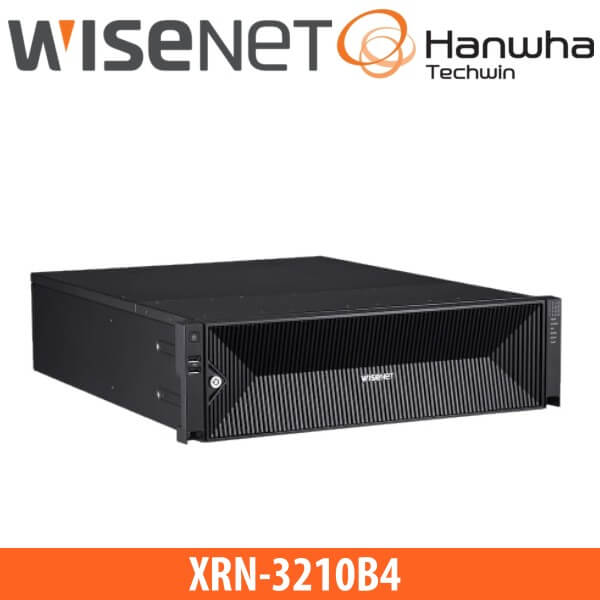

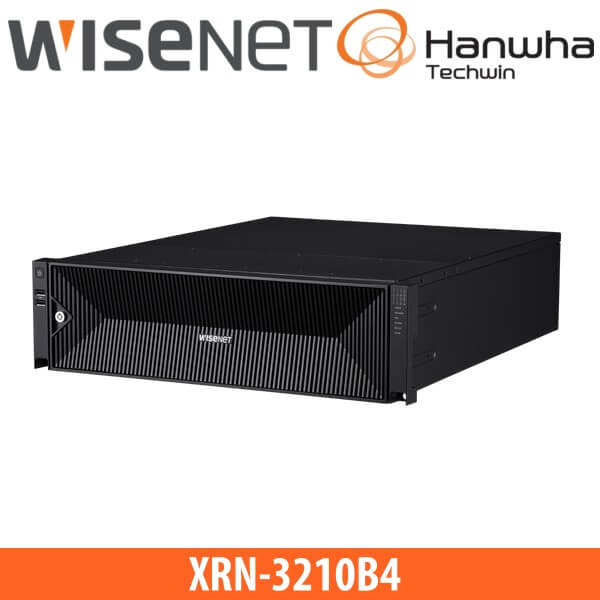

WISENET XRN-3210B4 32CH 32MP NVR Dakar

The WISENET XRN-3210B4 is a network video recorder supports Up to 32 channels with H.265, H.264, MJPEG compression, camera recording to a resolution of upto 32MP Resolution per channel and Max 400Mbps network camera recording is User friendly UI / UX Outputs a 4K high definition image using HDMI. The WISENET XRN-3210B4 is a Dynamic event support and Bookmark management supports upto 100 set. The XRN-3210DB4 support AI search features when using with Wisenet P series AI cameras. Users can search various attributes from AI cameras such as people (gender, age, hat, bag, color of clothes) and vehicle (type, color).

Ask for Quote & Get Low Price

Description

WISENET XRN-3210B4 NVR Dakar

The WISENET XRN-3210B4 NVR Dakar recorder allows you to record and search later objects such as human, vehicle, license plate determined and classified by artificial intelligence cameras or personal characteristics (such as top clothing color, bottom clothing color, glasses, bag) determined by artificial intelligence cameras. This function can reduce the presence of a single person to minutes or even seconds in large areas such as airports, railway stations, large hospitals, large public buildings or shopping malls where there are many people in view.

WISENET XRN-3210B4 FEATURES

  • User friendly UI / UX
  •  AI search support when working with Wisenet AI camera
  •  Dynamic Event support- New event function of cameras is available without software update
  •  Bookmark management (Up to 100 set)
  •  H.265, H.264, MJPEG compression support
  •  SATA 16ea (Up to 160TB)
  •  RAID 5/6 support
  • Provides new UI 2.0
  • Supports instant viewer
  • Can be linked to AI camera
  • Supports AI search (people, face, vehicle, license plate)
  • Supports BestShot view
  • Bookmark function
  • Thumbnail function
  • View camera event list in real time
  • Convenient event rule setup
  • Various sequence (layout, page) functions and Extended search period
  • Convenient log search
  • Supports thermal imaging camera/PTZ linked camera and a range of 4K camera resolutions
  • Outputs a 4K high definition image using HDMI
  • Supports dual monitor output (expand, duplicate)
  • Record and play video and audio
  • Supports ONVIF Profile S standard and RTP / RTSP protocols
  • Display the HDD operation status by HDD SMART and HDD overwrite enabled
  • Function to export using USB memory and external hard disk
  • Simultaneous play of 32, 64 channels
  • View multi-channel time line when playing videos
  • Various Search Modes (Time, Event, Smart, Text, Export, ARB)
  • ARB support (configuration feature for saving period by channel)
  • Various recording modes (Normal, Event, Scheduled Recording)
  • Alarm Input / Output
  • Remote monitoring function by Windows Network Viewer
  • Live monitoring of the network camera
  • Installation Wizard Function (Recorder, Web Viewer)
  • Supports the smartphone remote monitoring feature by P2P support
  • Provides smartphone event alarm (sending real-time event messages)

WISENET XRN-3210B4 SPECIFICATIONS

Display
Network camera

Inputs

Max. 32CH
Resolution 32MP ~ CIF
Protocols SUNAPI, ONVIF
Decoding
Local Display [Dual Display]
HDMI 1: 3840 x 2160 (30Hz)
HDMI 2: 1920×1080 (60Hz)
Multi Screen Display [Local Monitor] 1/ 2V/ 3V/ 4/ 8/ 9/ 13/ 16/ 25/ 36/ Sequence
[Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9
Resolution 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(120fps),

1080p(480fps), 720P(960fps), D1(960fps)

Performance
Operating System
Embedded Linux
Record
Compression H.265, H.264, MJPEG
Recording Bandwidth Max. 400Mbps
Resolution 32MP ~ CIF
Mode Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark
Event Trigger Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event
Event Action e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out
Search & Play
Playback Bandwidth RAID Mode : Max. 64Mbps(32CH simultaneously)
Non-RAID Mode : Max. 32Mbps
User Max. 4 Users (Local 1, Remote 3)
Simultaneous playback Max. 80CH(Local 32CH, Remote 16CH per user)
Fisheye Dewarping CMS
Mode Date & Time(Calendar), Event list, Text Search, Smart Search
Resolution CIF ~ 32MP (Up to H.264 9MP, H.265 32MP)
Playback Control Fast/Slow Forward / Backward, Move one step Up / Down
Storage
Supported HDD Up to 10TB
HDD Slot SATA 16ea(Max. 160TB, Non-RAID mode)
External iSCSI storage
RAID RAID-5/6(Array Size : 8 HDDs x 2 Array)
Backup
File backup BU/Exe(GUI), JPG/AVI(Network)
Function Multi channel(Up to 16CH) Play, Date-Time/Title display
Network
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP,

HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS,

DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI

(Server, Client)

DDNS Hanwha DDNS
Transmission Bandwidth Max. 400Mbps
Audio
Input/Output 32 CH(network)
Compression G.711, G.726, AAC(16/48KHz)
Audio Communication 2-Way
Max Remote Users Search(3), Live Unicast(10), Multicast(20)
Security IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware
Web viewer
Supported OS Windows 10, macOS 10.13
Supported browser Google Chrome, Microsoft Edge, Mac Safari
Viewer Software SSM, Webviewer, Smart Viewer, Wisenet mobile
Support SDK/CGI(SUNAPI) for integration to 3’rd party VMS
Functions
Camera Setup
Register Auto, Manual
Item IP address, Add profile edit, Bitrate, Compression, GOP, Quality,Camera MD setup (4, 8 point polygon) Camera video setup(Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage
PTZ
Control Via GUI, Webviewer, SPC-2000
Preset 300 Presets
Smart phone
Support Model iOS, Android
Protocol Support RTP, RTSP, HTTP, CGI(SUNAPI)
Control Live 16CH(Multi-Profile Support), Playback 4CH
Max. Remote Users Search(3), Live Unicast(10)
Redundancy
Failover N+1
ARB Support
Easy configuration P2P(QR code)
Interface
Front
Indicator HDD, Alarm, Power, Record, Backup, Network
Storage OK
Reset Power button
HDD Key Lock OK
HDMI 2EA ( Playback/Setup → HDMI1)
HDMI1 : 3840×2160 30Hz
HDMI2 : 1920×1080 60Hz
Audio Out 1EA
Ethernet RJ-45 3EA (LAN/WAN, 1Gbps)
Alarm In 8EA, Out 4EA
USB 4EA(Front 2 x USB 2.0, Rear 2 x USB 3.0)
Power inlet AC 1EA
System
Log
Log List Max. 100,000 (System Log, Event Log each)
System Control Mouse, Web, Controller (SPC-2000)
Language English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese
Environmental
Operating Temperature 0°C to +40°C(32℉ to 104℉)
Operating Humidity 20% ~ 85% RH
Electrical
Power Input 100 ~ 240 VAC ±10%; 50/60 Hz, 2.7A (Single SMPS)
Power Consumption Max. 265W (904.2 BTU with HDD 16ea)
Mechanical
Color / Material Black / Metal
Dimension (WxHxD) 440.0 x 132.0 x 571.1mm
Weight Approx. 13.4Kg(29.6 lb, HDD not included)
